TUSQ nuts and saddles > TUSQ Slotted 6 & 7 String Nuts - Acoustic & Electric

How to Measure a Nut

Length Width
1. Measure the overall length of your existing nut.  Be as accurate as you can by using a ruler, calipers or a tape measure. Record this dimension. 2. Measure the overall width of your existing nut. Be as accurate as you can by using a ruler, calipers or a tape measure. Record this dimension.
String Spacing Height

3. Measure the E to E spacing of your existing nut, from the center of the low E slot to the center of the high E slot. Be as accurate as you can by using a ruler, calipers or a tape measure. Record this dimension.
 4. Measure the overall height of your existing nut from the bottom to the highest point. Be as accurate as you can by using a ruler, calipers or a tape measure. Record this dimension.

5. Use the dimensions for your E to E spacing to find the closest match to a Graph Tech nut. You want the E to E spacing to be as close to your without going over (slightly smaller will work). All other dimensions can be slightly oversized as you can sand down the overall length, width and height with some fine grit sandpaper

CURRENCY
TUSQ 6 string Acoustic nut
Product #: PQ-1720-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 3/16" 1 11/16" 13/32" 1 13/32"
Inches 0.201 1.698 0.405 1.392
Mm 5.11 43.13 10.29 35.36
TUSQ 6 string acoustic nut
Product #: PQ-1728-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 3/16" 1 23/32" 11/32" 1 3/8"
Inches 0.201 1.71 0.355 1.389
Mm 5.11 43.43 9.02 35.28
TUSQ 6 String Acoustic Nut
Product #: PQ-1801-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. .202 1.80 .344 1.50
Inches 13/64" 1 13/16" 11/32" 1 1/2"
Mm 5.15 45.90 8.75 38.15
TUSQ Nut Slotted Strat Style-TOP SELLER
Product #: PQ-5000-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 1/8" 1 11/16" 3/16" 1 3/8"
Inches 0.134 1.69 0.2 1.38
Mm 3.4 42.93 5.08 35.05

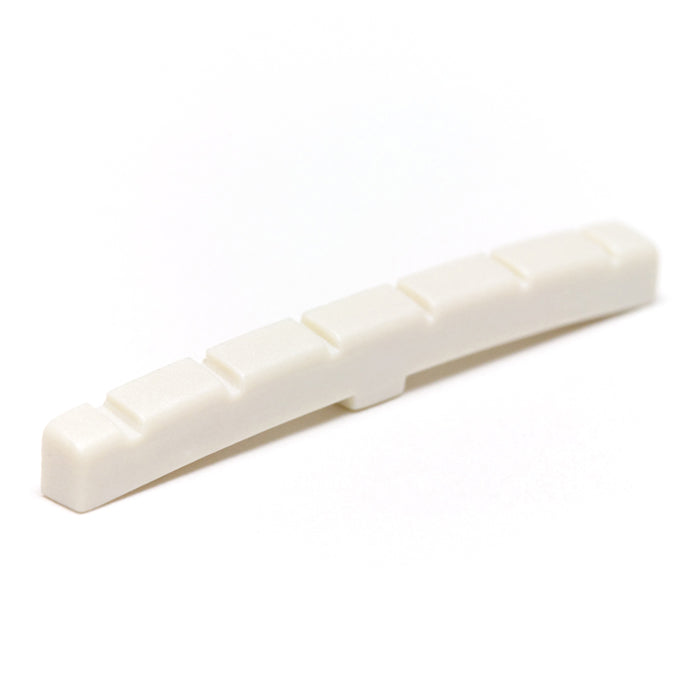

TUSQ - Slotted Strat Style Nut - LEFTY
Product #: PQ-5000-L0
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 1/8" 1 11/16" 3/16" 1 3/8"
Inches 0.134 1.690" 0.200" 1.380"
Mm 3.4 42.93 5.08 35.05
TUSQ Nut and Retainer Pak
Product #: PQ-5001-00
Pack Type: Per Unit
Price: $24.30
Meas. Thick Length Height E to E
Appr. In. 1/8" 1 11/16" 3/16" 1 3/8"
Inches 0.134" 1.690" 0.20" 1.380"
Mm 3.4 42.93 5.08 35.05
TUSQ Nut Slotted Strat Flat Bottom-TOP SELLER
Product #: PQ-5010-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 1/8" 1 3/4" 1/4" 1 3/8"
Inches 0.13 1.764 0.255 1.362
Mm 3.3 44.81 6.48 34.59
Strat Style Flat Bottom 6 Str Slotted 42mm
Product #: PQ-5042-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 0.127" 1.653" 0.196" 1.388"
Inches 1/8" 1 11/16" 3/16" 1 3/8"
Mm 3.22 41.98 4.98 35.25
TUSQ Nut Slotted Strat Style 7 String
Product #: PQ-5700-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 1/8" 1 15/16" 7/32" 1 5/8"
Inches 0.127 1.979 0.222 1.637
Mm 3.23 49.53 5.64 41.58
TUSQ Nut Slotted Jumbo
Product #: PQ-6000-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 3/16" 1 3/4" 11/32" 1  7/16"
Inches 0.196 1.735 0.329 1.425
Mm 4.98 44.07 8.36 36.2
TUSQ Nut Slotted Jumbo Lefty
Product #: PQ-6000-L0
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 3/16" 1 23/32" 11/32" 1  7/16"
Inches 0.195 1.715 0.335 1.425
Mm 4.95 43.56 8.51 36.2
TUSQ Nut Slotted Jumbo Gibson-TOP SELLER
Product #: PQ-6010-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 3/16" 1 3/4" 3/8" 1  7/16"
Inches 0.196 1.735 0.366 1.425
Mm 4.98 44.07 9.3 36.2
TUSQ Nut Slotted 1/4" Epiphone-TOP SELLER
Product #: PQ-6060-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 1/4" 1 3/4" 3/8" 1 3/8"
Inches 0.242 1.732 0.362 1.366
Mm 6.14 43.99 9.19 34.70
TUSQ Nut Slotted 1 23/32"-TOP SELLER
Product #: PQ-6114-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 3/16" 1 23/32" 11/32" 1 3/8"
Inches 0.195 1.705 0.332 1.374
Mm 4.95 43.31 8.43 34.9
TUSQ Nut Slotted 1 23/32" Lefty
Product #: PQ-6114-L0
Pack Type: Per Set
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 3/16" 1 23/32" 11/32" 1 3/8"
Inches 0.195 1.705 0.332 1.374
Mm 4.95 43.31 8.43 34.9
TUSQ Nut Slotted 6 String
Product #: PQ-6115-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 3/16" 1 23/32" 3/8" 1  7/16
Inches 0.185 1.71 0.385 1.45
Mm 4.7 43.43 9.78 36.83
TUSQ Slotted 1 11/16" Acoustc Nut - TOP SELLER
Product #: PQ-6116-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 3/16" 1 23/32" 11/32" 1  7/16"
Inches 0.192 1.707 0.331 1.435
Mm 4.88 43.36 8.41 36.45
TUSQ Nut Slotted 1 11/16" Lefty
Product #: PQ-6116-L0
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 3/16" 1 23/32" 11/32" 1  7/16"
Inches 0.192 1.707 0.331 1.435
Mm 4.88 43.36 8.41 36.45
TUSQ 1 3/4" slotted acoustic nut
Product #: PQ-6133-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 3/16" 1 3/4" 3/8" 1 1/2"
Inches 0.185 1.75 0.389 1.497
Mm 4.7 44.45 9.88 38.02
TUSQ Slotted 1 3/4" Slotted Acoustic Nut-TOP SELLER
Product #: PQ-6134-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 3/16" 1 25/32" 11/32" 1 1/2"
Inches 0.192 1.77 0.331 1.496
Mm 4.88 44.96 8.41 38
TUSQ Nut Slotted 1 3/4" Lefty
Product #: PQ-6134-L0
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 3/16" 1 25/32" 11/32" 1 1/2"
Inches 0.192 1.77 0.331 1.496
Mm 4.88 44.96 8.41 38
TUSQ Nut Slotted 1.8"
Product #: PQ-6135-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 7/32" 1 13/16" 11/32" 1 1/2"
Inches 0.207 1.8 0.345 1.5
Mm 5.26 45.72 8.76 38.1
TUSQ  1 13/16" Slotted Acoustic Nut -TOP SELLER
Product #: PQ-6136-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 3/16" 1 27/32" 11/32" 1 9/16"
Inches 0.187 1.83 0.341 1.555
Mm 4.75 46.48 8.66 39.5
TUSQ 1 7/8" Slotted Acoustic Nut - TOP SELLER
Product #: PQ-6138-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 3/16" 1 29/32" 11/32" 1 19/32"
Inches 0.189 1.898 0.34 1.594
Mm 4.8 48.21 8.64 40.49
TUSQ Nut Slotted 1 5/8"
Product #: PQ-6225-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 1/4" 1 5/8" 5/16" 1 3/8"
Inches 0.248 1.625 0.324 1.376
Mm 6.3 41.27 8.23 34.95
TUSQ Nut Slotted
Product #: PQ-6226-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 1/4" 1 5/8" 7/32" 1 3/8"
Inches 0.24 1.62 0.23 1.365
Mm 6.1 41.15 5.84 34.67
TUSQ Nut Slotted 1 3/4"
Product #: PQ-6234-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 1/4" 1 3/4" 11/32" 1 1/2"
Inches 0.248 1.751 0.336 1.481
Mm 6.3 44.48 8.53 37.62
TUSQ Nut Slotted 1 3/4"
Product #: PQ-6235-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 1/4" 1 3/4" 1/4" 1 1/2"
Inches 0.25 1.75 0.246 1.481
Mm 6.35 44.45 6.25 37.62
Tusq 6 string Acoustic
Product #: PQ-6400-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 13/64" 1 3/4" 1/32" 1 15/32
Inches 1.96 1.753 .32 1.46
Mm 4.94 44.64 8.05 37.44
TUSQ Slotted 6 String 1/4\" x 1 11/16\" for Acoustic or Electric
Product #: PQ-6643-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 0.236 1.691 0.313 1.387
Inches 1/4\" 1 11/16\" 5/16\" 1 3/8\"
Mm 5.98 42.95 7.95 35.22
TUSQ Nut Slotted Carvin 7 String
Product #: PQ-6700-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 3/16" 1 29/32" 11/32" 1 5/8"
Inches 0.195 1.918 0.341 1.62
Mm 4.95 48.72 8.66 41.15
TUSQ 1 11/16" Slotted Martin Style Acoustic Nut - TOP SELLER
Product #: PQ-M600-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 7/32" 1 23/32" 3/8" 1 3/8"
Inches 0.228 1.709 0.361 1.378
Mm 5.79 43.41 9.17 35
TUSQ 1 3/4" Slotted Martin Style Nut - TOP SELLER
Product #: PQ-M644-00
Pack Type: Per Unit
Price: $13.65
Meas. Thick Length Height E to E
Appr. In. 7/32" 1 3/4" 3/8" 1 13/32"
Inches 0.224 1.745 0.361 1.418
Mm 5.69 44.32 9.17 36.02
TUSQ String Tree (Retainers)
Product #: PQ-7000-00
Pack Type: Per Unit
Price: $13.65




TUSQ String Trees 1 short, 1 tall
Product #: PQ-7001-00
Pack Type: Per Unit
Price: $13.65




TUSQ Strap Buttons - V Shaped
Product #: PQ-7200-00
Pack Type: Per Unit
Price: $13.65




TUSQ Strap Buttons - Vintage Acoustic
Product #: PQ-7202-00
Pack Type: Per Unit
Price: $13.65
